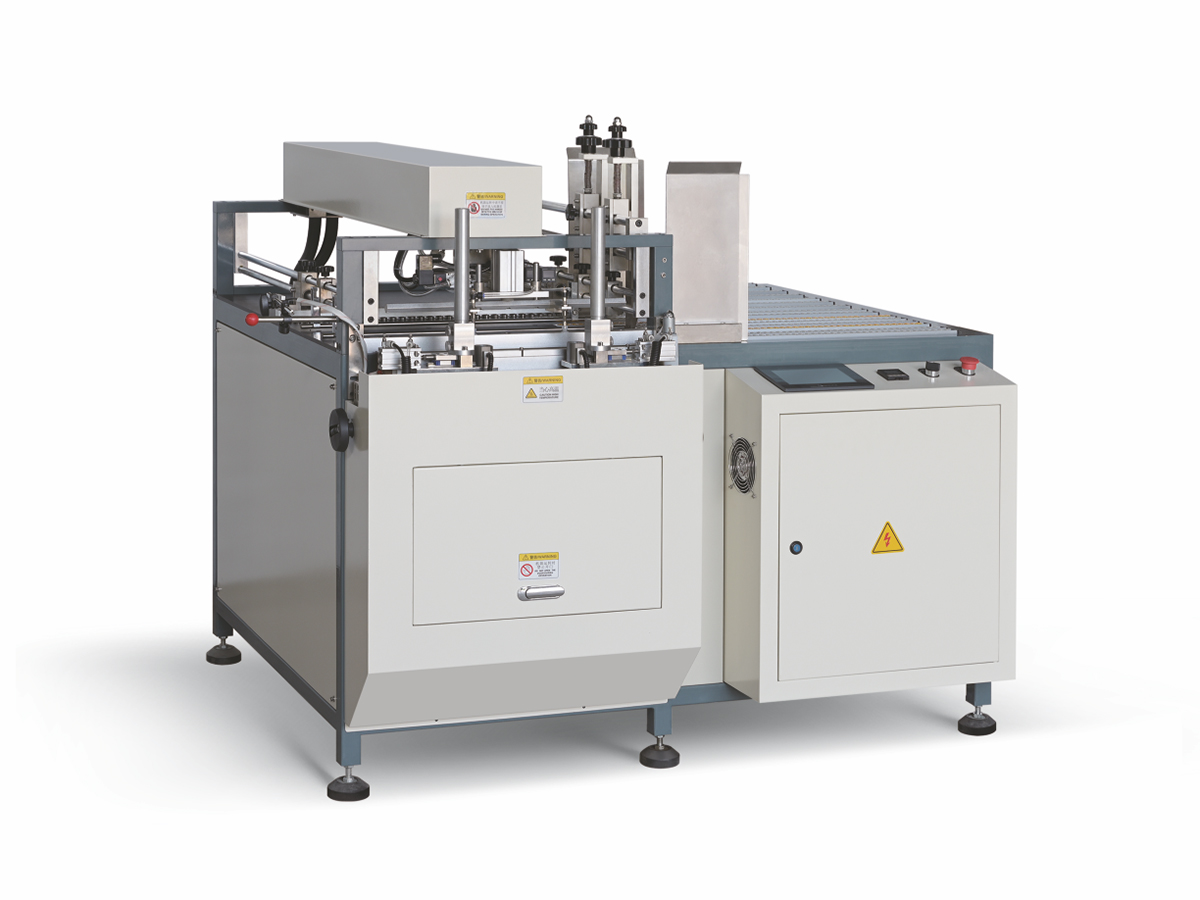

JX-D700/D950 Automatic Magnet / Steel Sheet Pasting Machine
| Online More Information | |
| Share： |
|
产品介绍
Scope：
The equipment is suitable for making the box of heaven and earth box, book box, gift box, hardcover box and so on. Automatic dispensing, automatic magnet function, instead of the traditional manual hole placement magnet mode, the output can reach 1000-1200pcs/ hours, a single machine can operate, reduce labor costs! It has the advantages of high efficiency, high stability, high qualified rate and small area.
Main Technical Parameters：
Model
JX-D700
JX-D950
Max.cardboard size
400×700mm
500×1000mm Min.cardboard size
50×55mm
50×55mm Past Magnetic or steel edge size
0-450mm
0-450mm Magnetic or patch steel size(normal mode)
Min.: 50mm Max.: 500mm
Min.: 50mm Max.: 500mm Magnetic or patch steel size(Dislocation mode）
Min.: 0mm Max.: 500mm
Min.: 0mm Max.: 500mm Applicable round magnet iron sheet size
Φ6-Φ20mm
Φ6-Φ20mm Applicable Square magnet iron sheet size
8×10-15×20
8×10-15×20 Place the highest position of the magnet
240mm
220mm Place the highest position of the magnet
240mm
240mm Place cardboard height
400mm (feeding without stop)
400mm (feeding without stop) Cardboard thickness
1-3mm
1-3mm Total power
2KW
2KW Air pressure
≥0.6Mpa
≥0.6Mpa Dimensions
1250×1100×1400mm
1500×1250×1400mm Heating tube power
800W
800W Glue material
Hot melt adhesive
Hot melt adhesive Total Weight
280KG
350KG
